Husqvarna T540 XP® II

Husqvarna T540 XP® II

Price range: $639.99 through $669.99

37.7 cm³

Cylinder displacement

2.4 hp

Output shaft power1

63.65 fts

Chain speed at max power
Compare
SKU: 967 89 39‑72-1-1-1-1-1-1-1 Categories: , , , Brand:

Description

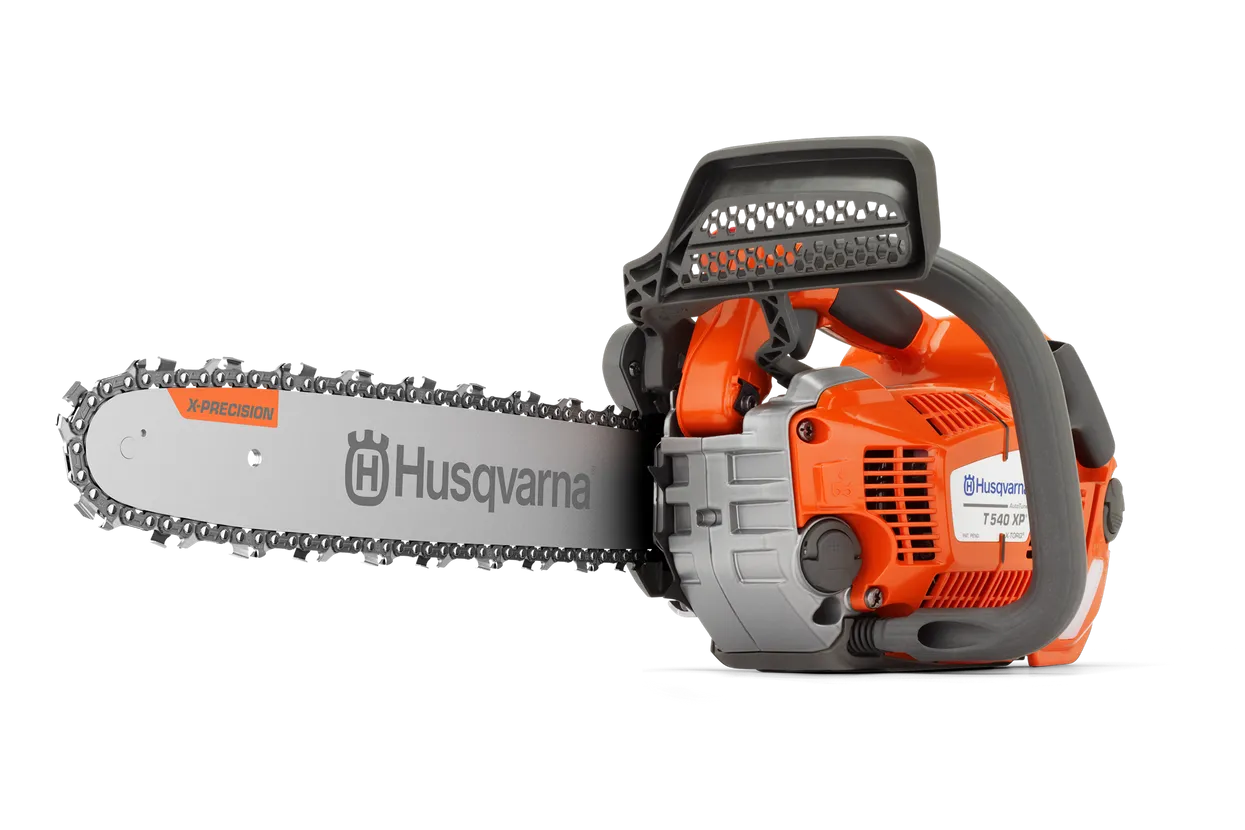

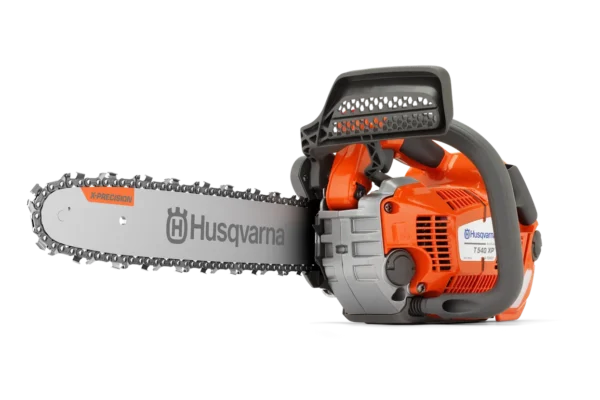

Powerful 38cc top-handle chainsaw for professional tree climbers

Husqvarna T540 XP® is designed for the high-end top handle saw segment, targeting professional customers like full pro arborists, landscapers, garden contractors and utility services who need excellent performance in combination with the best ergonomics.

Specifications

16″ SP21G SN
14″ SP21G SN
Engine
Chain speed at max power 63.65 fts 63.65 fts
Cylinder displacement 37.7 cm³ 37.7 cm³
Output shaft power1
 2.4 hp 2.4 hp
Torque, max. 1.83 Nm 1.83 Nm
Torque, max. at rpm 140 rpm 140 rpm
Clutch engagement speed (±120) 4,500 rpm 4,500 rpm
Electrode gap 0.02 in 0.02 in
Idling speed 3,000 rpm 3,000 rpm
Ignition module air gap 0.01 in 0.01 in
Maximum power speed 10,200 rpm 10,200 rpm
Oil pump capacity, max 9 ml/min 9 ml/min
Oil pump capacity, min 3 ml/min 3 ml/min
Oil pump type Adjustable flow Adjustable flow
Spark Plug NGK CMR6H NGK CMR6H
Equipment
Recommended bar length, min 12 in 12 in
Pitch .325″ mini .325″ mini
Recommended bar length, max 16 in 16 in
Chain type SP21G SP21G
Bar length 40 cm 35 cm
Bar length (inch) 16 in 14 in
Sprocket type Spur 6 Spur 6
Gauge .043″ .043″
Dimensions
Weight (excl. cutting equipment) 8.6 lbs 8.6 lbs
Sound and noise
Sound pressure level at operators ear 104 dB(A) 104 dB(A)
Sound power level, guaranteed (LWA) 116 dB(A) 116 dB(A)
Sound power level, measured 114 dB(A) 114 dB(A)
Vibration
Equivalent vibration level (ahv, eq) rear handle 4.2 m/s² 4.2 m/s²
Equivalent vibration level (ahv, eq) front handle 3.5 m/s² 3.5 m/s²
Lubricant
Oil tank volume 0.42 US pint 0.42 US pint
Lubricant type (Engine) Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1
Emission
Exhaust emissions (CO₂ EU V)2
 968 g/kWh 968 g/kWh
Disclaimer:
  • 1Output shaft power: Net power rating as per ISO 7293, at specified RPM
  • 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.

Additional information

Bar length

14 in, 16 in
