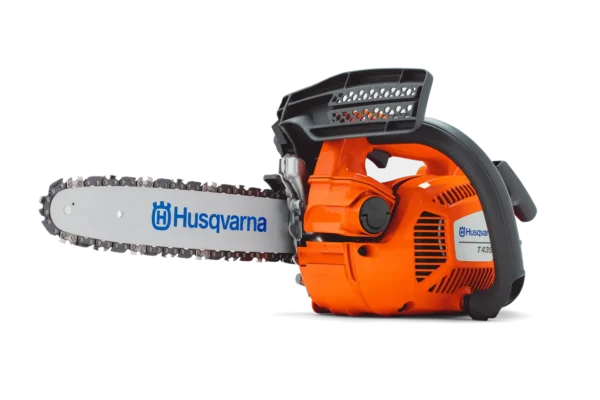

Husqvarna T435
$429.99 – $449.99
35.2 cm³Cylinder displacement |
2.01 hpOutput shaft power1 |
62.3 ftsChain speed at max power |
Description
Professional 50cc chainsaw with heated handles and carburetor
The second generation of Husqvarna’s 550 XP® chainsaw is ready for demanding use in your felling, limbing and bucking operations. The saw delivers maximum power in the 50cc class. Designed for professional forestry and tree care crews, this durable saw has improved power and a slimmed-down design. Plus, heated handles increase comfort in cold and damp conditions.
Specifications
|
16″ Bar, .3/8″ Pitch, .050″ Gauge
SKU: 966 99 72‑36
|
12″ SN 3/8 mini” 1,3 mm H37
SKU: 966 99 72‑03
|
12″ Bar, .3/8″ Pitch, .050″ Gauge
SKU: 966 99 72‑32
|
14″ Bar, .3/8″ Pitch, .050″ Gauge
SKU: 966 99 72‑34
|
|||||||
| Engine | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Chain speed at max power | 62.3 fts | 62.3 fts | 62.3 fts | 62.3 fts | ||||||
| Cylinder displacement | 35.2 cm³ | 35.2 cm³ | 35.2 cm³ | 35.2 cm³ | ||||||
|
Output shaft power1
|
2.01 hp | 2.01 hp | 2.01 hp | 2.01 hp | ||||||
| Torque, max. | 1.57 Nm | 1.57 Nm | 1.57 Nm | 1.57 Nm | ||||||
| Torque, max. at rpm | 7,500 rpm | 7,500 rpm | 7,500 rpm | 7,500 rpm | ||||||
| Clutch engagement speed (±120) | 4,700 rpm | 4,700 rpm | 4,700 rpm | 4,700 rpm | ||||||
| Electrode gap | 0.03 in | 0.03 in | 0.03 in | 0.03 in | ||||||
| Idling speed | 2,900 rpm | 2,900 rpm | 2,900 rpm | 2,900 rpm | ||||||
| Ignition module air gap | 0.02 in | 0.02 in | 0.02 in | 0.02 in | ||||||
| Maximum power speed | 10,000 rpm | 10,000 rpm | 10,000 rpm | 10,000 rpm | ||||||
| Oil pump capacity, max | 9 ml/min | 9 ml/min | 9 ml/min | 9 ml/min | ||||||
| Oil pump capacity, min | 3 ml/min | 3 ml/min | 3 ml/min | 3 ml/min | ||||||
| Oil pump type | Automatic | Automatic | Automatic | Automatic | ||||||
| Spark Plug | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H | ||||||
| Equipment | ||||||||||
| Recommended bar length, min | 12 in | 12 in | 12 in | 12 in | ||||||
| Pitch | 3/8″ mini | 3/8″ mini | 3/8″ mini | 3/8″ mini | ||||||
| Recommended bar length, max | 14 in | 14 in | 14 in | 14 in | ||||||
| Chain type | H37 | H37 | H37 | |||||||
| Bar length | 40 cm | 30 cm | 30 cm | 35 cm | ||||||
| Bar length (inch) | 16 in | 12 in | 12 in | 14 in | ||||||
| Sprocket type | Spur 6 | Spur 6 | Spur 6 | Spur 6 | ||||||
| Gauge | .050″ | .050″ | .050″ | .050″ | ||||||
| Dimensions | ||||||||||
| Weight (excl. cutting equipment) | 7.5 lbs | 7.5 lbs | 7.5 lbs | 7.5 lbs | ||||||
| Sound and noise | ||||||||||
| Sound pressure level at operators ear | 103 dB(A) | 103 dB(A) | 103 dB(A) | 103 dB(A) | ||||||
| Sound power level, guaranteed (LWA) | 114 dB(A) | 114 dB(A) | 114 dB(A) | 114 dB(A) | ||||||
| Sound power level, measured | 112 dB(A) | 112 dB(A) | 112 dB(A) | 112 dB(A) | ||||||
| Vibration | ||||||||||
| Equivalent vibration level (ahv, eq) rear handle | 3.9 m/s² | 3.9 m/s² | 3.9 m/s² | 3.9 m/s² | ||||||
| Equivalent vibration level (ahv, eq) front handle | 3.6 m/s² | 3.6 m/s² | 3.6 m/s² | 3.6 m/s² | ||||||
| Lubricant | ||||||||||
| Oil tank volume | 0.36 US pint | 0.36 US pint | 0.36 US pint | 0.36 US pint | ||||||
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | ||||||
| Emission | ||||||||||
|
Exhaust emissions (CO₂ EU V)2
|
860 g/kWh | 860 g/kWh | 860 g/kWh | 860 g/kWh | ||||||
Disclaimer:
- 1Output shaft power: Net power rating as per ISO 7293, at specified RPM
- 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
Additional information
| Bar length | 12 in, 14 in, 16 in |
|---|
