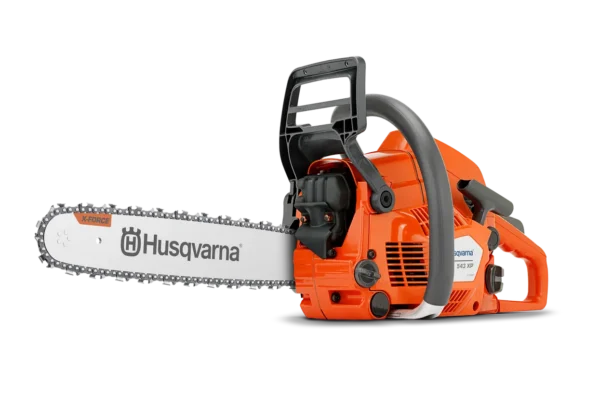

Husqvarna 543 XP®
$599.99
43.1 cm³Cylinder displacement |
2.95 hpOutput shaft power1 |
60.7 ftsChain speed at max power |
Available on backorder
CompareDescription
Professional, lightweight 43cc chainsaw for efficient tree care
The light and effective Husqvarna 543 XP® is developed for tree care professionals and skilled land owners. The low weight and high chain speed lead to efficient limbing work. Our unique X-Torq® engine technology provides more power where you need it, up to 20% less fuel consumption and up to 75% less exhaust emission.
Specifications
| Engine | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Chain speed at max power | 60.7 fts | |||||||||
| Cylinder displacement | 43.1 cm³ | |||||||||
|
Output shaft power1
|
2.95 hp | |||||||||
| Torque, max. | 2.4 Nm | |||||||||
| Torque, max. at rpm | 7,200 rpm | |||||||||
| Clutch engagement speed (±120) | 4,200 rpm | |||||||||
| Electrode gap | 0.03 in | |||||||||
| Idling speed | 2,700 rpm | |||||||||
| Ignition module air gap | 0.02 in | |||||||||
| Maximum power speed | 9,600 rpm | |||||||||
| Oil pump capacity, max | 13 ml/min | |||||||||
| Oil pump capacity, min | 3 ml/min | |||||||||
| Oil pump type | Adjustable flow, no flow at idle | |||||||||
| Spark Plug | NGK CMR7H | |||||||||
| Equipment | ||||||||||
| Recommended bar length, min | 13 in | |||||||||
| Pitch | .325″ | |||||||||
| Recommended bar length, max | 18 in | |||||||||
| Chain type | SP33G | |||||||||
| Bar length | 40 cm | |||||||||
| Bar length (inch) | 16 in | |||||||||
| Gauge | .050″ | |||||||||
| Dimensions | ||||||||||
| Weight (excl. cutting equipment) | 9.92 lbs | |||||||||
| Sound and noise | ||||||||||
| Sound pressure level at operators ear | 101 dB(A) | |||||||||
| Sound power level, guaranteed (LWA) | 113 dB(A) | |||||||||
| Sound power level, measured | 112 dB(A) | |||||||||
| Vibration | ||||||||||
| Equivalent vibration level (ahv, eq) rear handle | 4.2 m/s² | |||||||||
| Equivalent vibration level (ahv, eq) front handle | 4.5 m/s² | |||||||||
| Lubricant | ||||||||||
| Oil tank volume | 0.57 US pint | |||||||||
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 | |||||||||
| Emission | ||||||||||
|
Exhaust emissions (CO₂ EU V)2
|
780 g/kWh | |||||||||
Disclaimer:
- 1Output shaft power: Net power rating as per ISO 7293, at specified RPM
