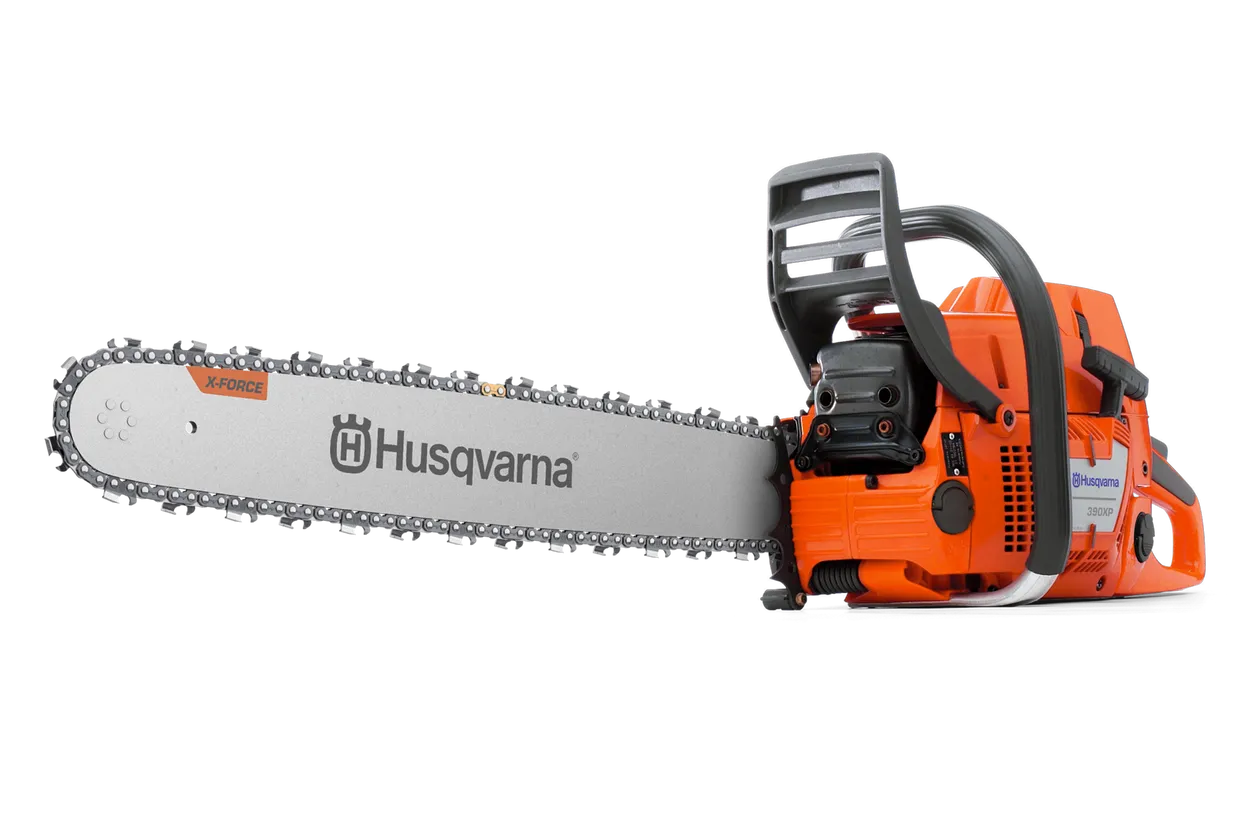

Husqvarna 390 XP®
Price range: $1,349.99 through $1,479.99
88 cm³Cylinder displacement |
6.5 hpOutput shaft power1 |
70.2 ftsChain speed at max power |
Description
Professional 88cc chainsaw designed for sawing with longer bars
Discover the high end of logging and forestry chainsaws. The Husqvarna 390 XP® features professional performance and excellent vibration dampening, making work easier and more efficient than ever before. The LowVib® system and smart ergonomics make this large, powerful saw easy to handle – even with longer guide bars. Additionally, Smart Start® technology guarantees faster start-ups, while the rubber-mounted carburetor boosts durability. Prepare to get the job done like never before.
Specifications
|
32″ RSN 3/8″ 1,6 mm H83
|
20″ Bar, 3/8″ Pitch, .050″ Gauge, Assembly Required
|
24″ Bar, 3/8″ Pitch, .050″ Gauge, Assembly Required
|
28″ Bar, 3/8″ Pitch, .050″ Gauge, Assembly Required
|
20″ Bar, 3/8″ Pitch, .058″ Gauge, Assembly Required
|
32″ Bar, 3/8″ Pitch, .050″ Gauge, Assembly Required
|
24″ Bar, 3/8″ Pitch, .058″ Gauge, Assembly Required
|
28″ Bar, 3/8″ Pitch, .058″ Gauge, Assembly Required
|
28″ RSN 3/8″ 1,6 mm H83
|
28″ US Lightweight RSN 3/8″ 1,3 mm C83
|
32″ US Lightweight RSN 3/8″ 1,6 mm H83
|
36″ US Lightweight RSN 3/8″ 1,6 mm H83
|
|||
| Engine | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Chain speed at max power | 70.2 fts | 70.2 fts | 70.2 fts | 70.21 fts | 70.21 fts | 70.2 fts | 70.2 fts | 70.2 fts | 70.2 fts | 70.2 fts | 70.2 fts | 70.2 fts | ||
| Cylinder displacement | 88 cm³ | 88 cm³ | 88 cm³ | 88 cm³ | 88 cm³ | 88 cm³ | 88 cm³ | 88 cm³ | 88 cm³ | 88 cm³ | 88 cm³ | 88 cm³ | ||
|
Output shaft power1
|
6.5 hp | 6.5 hp | 6.5 hp | 6.5 hp | 6.5 hp | 6.5 hp | 6.5 hp | 6.5 hp | 6.5 hp | 6.5 hp | 6.5 hp | 6.5 hp | ||
| Torque, max. | 4.7 Nm | 4.7 Nm | 4.7 Nm | 4.7 Nm | 4.7 Nm | 4.7 Nm | 4.7 Nm | 4.7 Nm | 4.7 Nm | 4.7 Nm | 4.7 Nm | 4.7 Nm | ||
| Torque, max. at rpm | 6,600 rpm | 6,600 rpm | 6,600 rpm | 6,600 rpm | 6,600 rpm | 6,600 rpm | 6,600 rpm | 6,600 rpm | 6,600 rpm | 6,600 rpm | 6,600 rpm | 6,600 rpm | ||
| Clutch engagement speed (±120) | 3,600 rpm | 3,600 rpm | 3,600 rpm | 3,600 rpm | 3,600 rpm | 3,600 rpm | 3,600 rpm | 3,600 rpm | 3,600 rpm | 3,600 rpm | 3,600 rpm | 3,600 rpm | ||
| Electrode gap | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | ||
| Idling speed | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | ||
| Ignition module air gap | 0 in | 0 in | 0 in | 0.01 in | 0.01 in | 0 in | 0 in | 0 in | 0 in | 0 in | 0 in | 0 in | ||
| Maximum power speed | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | ||
| Oil pump capacity, max | 24 ml/min | 24 ml/min | 24 ml/min | 24 ml/min | 24 ml/min | 24 ml/min | 24 ml/min | 24 ml/min | 24 ml/min | 24 ml/min | 24 ml/min | 24 ml/min | ||
| Oil pump capacity, min | 6 ml/min | 6 ml/min | 6 ml/min | 6 ml/min | 6 ml/min | 6 ml/min | 6 ml/min | 6 ml/min | 6 ml/min | 6 ml/min | 6 ml/min | 6 ml/min | ||
| Oil pump type | Automatic | Adjustable flow | Adjustable flow | Adjustable flow | Adjustable flow | Adjustable flow | Adjustable flow | Adjustable flow | Automatic | Automatic | Automatic | Automatic | ||
| Spark Plug | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | ||
| Equipment | ||||||||||||||
| Recommended bar length, min | 18 in | 18 in | 18 in | 18 in | 18 in | 18 in | 18 in | 18 in | 18 in | 18 in | 18 in | 18 in | ||
| Pitch | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | ||
| Recommended bar length, max | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | ||
| Chain type | H83 | C83 | C83 | C83 | C85 | C83 | C85 | C85 | H83 | C83 | H83 | H83 | ||
| Bar length | 81 cm | 50 cm | 60 cm | 70 cm | 50 cm | 81 cm | 60 cm | 45 cm | 70 cm | 70 cm | 81 cm | 90 cm | ||
| Bar length (inch) | 32 in | 20 in | 24 in | 28 in | 20 in | 32 in | 24 in | 18 in | 28 in | 28 in | 32 in | 36 in | ||
| Sprocket type | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | ||
| Gauge | .063″ | .058″ | .058″ | .058″ | .058″ | .058″ | .058″ | .058″ | .063″ | .058″ | .058″ | .058″ | ||
| Dimensions | ||||||||||||||
| Weight (excl. cutting equipment) | 16.1 lbs | 16.1 lbs | 16.1 lbs | 16.1 lbs | 16.1 lbs | 16.1 lbs | 16.1 lbs | 16.1 lbs | 16.1 lbs | 16.1 lbs | 16.1 lbs | 16.1 lbs | ||
| Sound and noise | ||||||||||||||
| Sound pressure level at operators ear | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | ||
| Sound power level, guaranteed (LWA) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | ||
| Sound power level, measured | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) | ||
| Vibration | ||||||||||||||
| Equivalent vibration level (ahv, eq) rear handle | 7.5 m/s² | 6.2 m/s² | 6.2 m/s² | 6.2 m/s² | 6.2 m/s² | 6.2 m/s² | 6.2 m/s² | 6.2 m/s² | 7.5 m/s² | 7.5 m/s² | 7.5 m/s² | 7.5 m/s² | ||
| Equivalent vibration level (ahv, eq) front handle | 6.5 m/s² | 3.5 m/s² | 3.5 m/s² | 3.5 m/s² | 3.5 m/s² | 3.5 m/s² | 3.5 m/s² | 3.5 m/s² | 6.5 m/s² | 6.5 m/s² | 6.5 m/s² | 6.5 m/s² | ||
| Lubricant | ||||||||||||||
| Oil tank volume | 1.06 US pint | 1.06 US pint | 1.06 US pint | 1.06 US pint | 1.06 US pint | 1.06 US pint | 1.06 US pint | 1.06 US pint | 1.06 US pint | 1.06 US pint | 1.06 US pint | 1.06 US pint | ||
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | ||
Disclaimer:
- 1Output shaft power: Net power rating as per ISO 7293, at specified RPM
- 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
Additional information
| Bar length | 18 in, 20 in, 24 in, 28 in, 32 in, 36 in |
|---|
