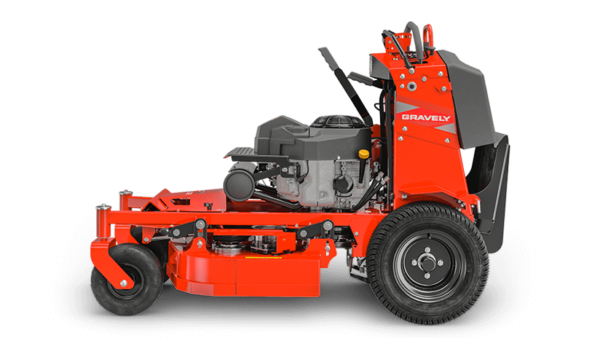

Gravely Z-Stance Series

$7,199.00$7,999.00

Compare
SKU: 949001-1-1 Categories: , , Brand:

Description

Features

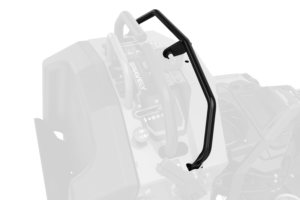

ADJUSTABLE CRUISE BAR

Easily limit and expand the machine’s maximum speed in tight working environments.

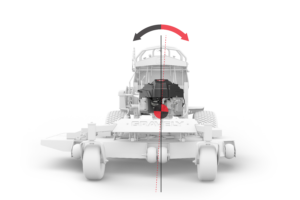

LOW CENTER OF GRAVITY

Weight is distributed better to give you hillside stability and confidence in your ride.

FLIP-UP SUSPENSION PLATFORM

The flip-up suspension platform lets you stand comfortably all day or easily transition to a walk-behind and get some steps in.

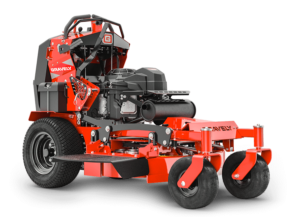

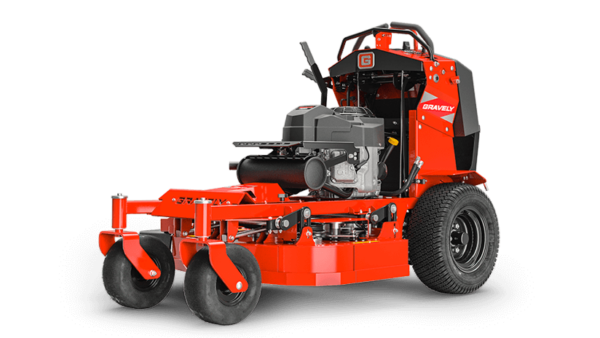

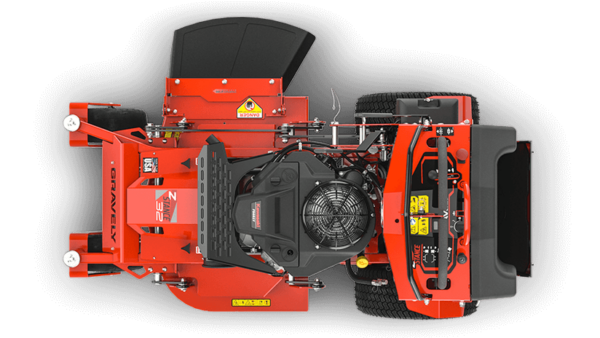

Z-STANCE 32 KAWASAKI

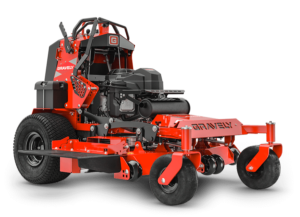

Z-STANCE 48 KAWASAKI

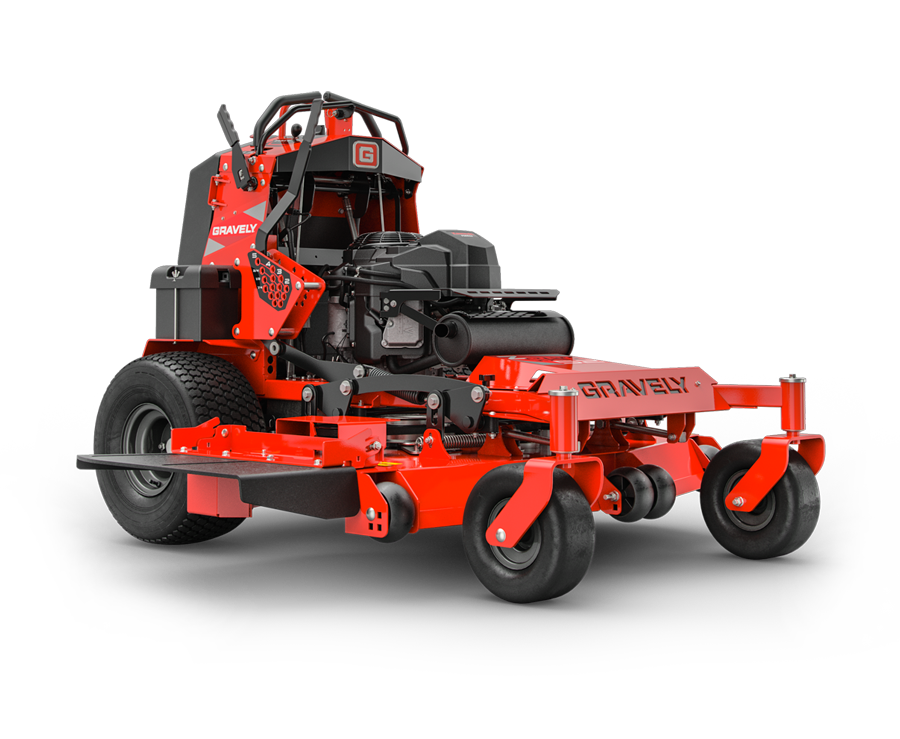

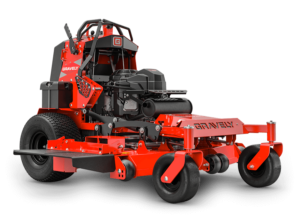

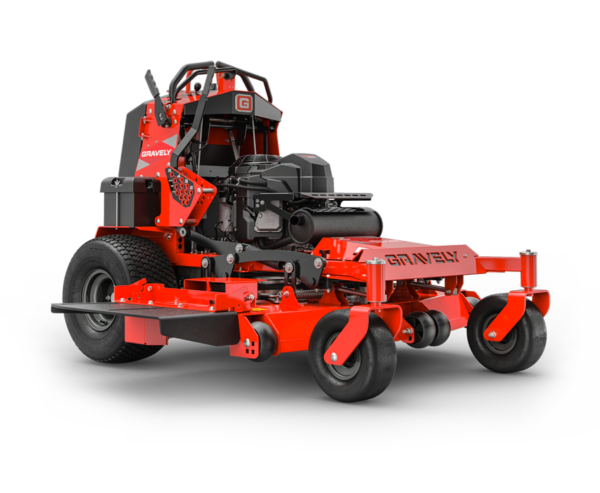

Z-STANCE 52 KAWASAKI

Model Number 994160 994159 994158
Power Train
Engine Kawasaki® FS600V Kawasaki® FS651V Kawasaki® FS651V
Horsepower 18.5 22 22
Engine Displacement 36.8 in / 603 cc 44.3 in / 725.9 cc 44.3 in / 725.9 cc
Fuel System Gas Gas Gas
Fuel Capacity 4.5 gal / 17 ltr 4.5 gal / 17 ltr 4.5 gal / 17 ltr
Drive System Hydro-Gear® ZT-3100® Transaxles Hydro-Gear® ZT-3100® Transaxles Hydro-Gear® ZT-3100® Transaxles
Transmission Type Hydrostatic Hydrostatic Hydrostatic
Brake Type Lever Activated Parking Lever Activated Parking Lever Activated Parking
Driver Position Stand Stand Stand
Ground Speed Forward 7 mph / 11.3 kph 7 mph / 11.3 kph 7 mph / 11.3 kph
Ground Speed Reverse 3 mph / 4.8 kph 3 mph / 4.8 kph 3 mph / 4.8 kph
Wheels Front 11.0 x 5.0 in – 6.0 in (27.9 x 12.7 cm – 27.9 cm) 11.0 x 6.0 in – 5.0 in (27.9 x 15.2 cm – 27.9 cm) 11.0 x 6.0 in – 5.0 in (27.9 x 15.2 cm – 27.9 cm)
Wheels Rear 20.0 x 6.5 in – 8.0 in (50.8 x 16.5 cm – 20.3 cm) 20.0 x 10.0 in – 8.0 in (50.8 x 25.4 cm – 20.3 cm) 20.0 x 10.0 in – 8.0 in (50.8 x 25.4 cm – 20.3 cm)
Front Wheel Track 24.8 in 38.5 in 38.5 in
Rear Wheel Track 32.4 in / 82.3 cm 46.2 in / 117.3 cm 46.2 in / 117.3 cm
Electric
Charger Type Standard Standard Standard
Battery Capacity 300 CCA 300 CCA 300 CCA
Number of Batteries 1 1 1
Battery Voltage 12 12 12
Battery Type Lead Acid – Maintenance Free Lead Acid – Maintenance Free Lead Acid – Maintenance Free
Battery Size U1 U1 U1
Deck
Deck Size 32 in / 81.3 cm 48 in / 121.9 cm 52 in / 132.1 cm
Coverage Hour 2.2 acres / 0.9 hectares 3.4 acres / 1.4 hectares 3.6 acres / 1.5 hectares
Spindle Type Mechanical Mechanical Mechanical
Deck Material 7 ga 10 ga 10 ga
Deck Construction Fabricated X-Factor ® II Fabricated X-Factor® 3 Fabricated X-Factor® 3
Discharge Configuration Side Side Side
Cutting Height Min 2 in / 5.1 cm 1.5 in / 3.8 cm 1.5 in / 3.8 cm
Cutting Height Max 5 in / 12.7 cm 5 in / 12.7 cm 5 in / 12.7 cm
Cutting Width 32 in / 81.3 cm 48 in / 121.9 cm 52 in / 132.1 cm
DImensions
Weight (assembled) 669 lb 744 lb 763 lb
Length 65.5 in / 166.4 cm 65.5 in / 166.4 cm 65.5 in / 166.4 cm
Width 32 in / 81.3 cm 48 in / 121.9 cm 52 in / 132.1 cm
Width (Chute Up) 32.8 in / 83.3 cm 49.5 in / 125.7 cm 55 in / 139.7 cm
Width (Chute Down) 44.8 in / 113.8 cm 61 in / 154.9 cm 66.8 in / 169.5 cm

Additional information

Model

Z-STANCE 32 KAWASAKI, Z-STANCE 48 Kawasaki, Z-STANCE 52 Kawasaki
