Gravely PRO-TURN® ZX Series

Gravely PRO-TURN® ZX Series

Price range: $9,799.00 through $9,999.00

Compare
SKU: N/A Categories: , , Brand:

Description

Features

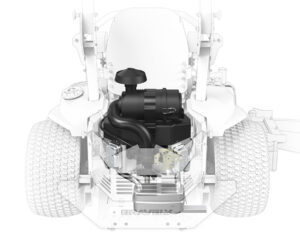

Kawasaki® FX Engine

Delivers reliable power and performance and is equipped with commercial canister air filtration for maximum power and torque, no matter how tough the conditions.

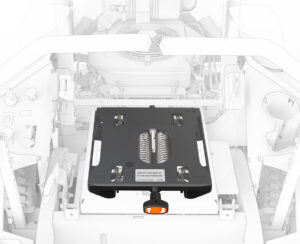

Seat Suspension

The seat is adjustable and has the new addition of a low-profile seat mechanism for added comfort.

Suspension Forks

Absorb those big impacts so your body doesn’t, further improving the ride and decreasing fatigue.

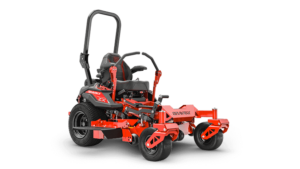

PRO-TURN ZX 48 Kawasaki

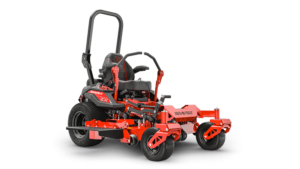

PRO-TURN ZX 52 Kawasaki

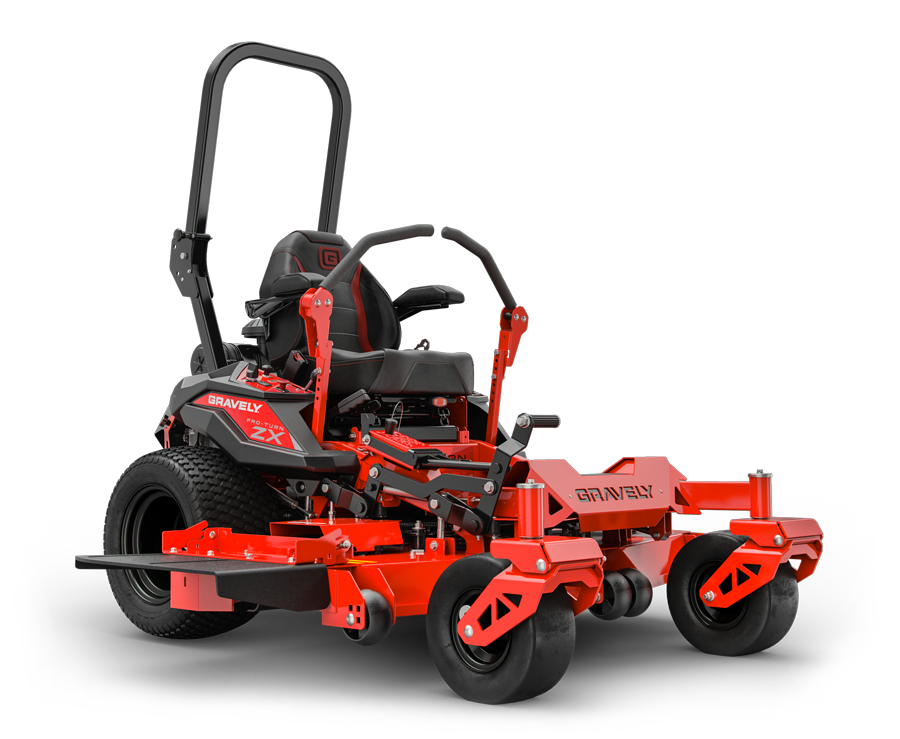

PRO-TURN ZX 60 Kawasaki
Model Number 991287 991289 991291
Power Train
Engine Kawasaki® FX691V Kawasaki® FX730V Kawasaki® FX730V
Horsepower 22 22 23.5
Engine Displacement 44.3 in / 726 cc 44.3 in / 726 cc 726 cc
Fuel System Gas Gas Gas
Fuel Capacity 5.1 gal / 19.3 ltr 5.1 gal / 19.3 ltr 5.1 gal / 19.3 ltr
Drive System Hydro-Gear® ZT-3200™ Transaxles Hydro-Gear® ZT-3200™ Transaxles Hydro-Gear® ZT-3200™ Transaxles
Brake Type Lever Activated Parking Lever Activated Parking Lever Activated Parking
Driver Position Sit Sit Sit
Ground Speed Forward 8.5 mph / 13.7 kph 8.5 mph / 13.7 kph 8.5 mph / 13.7 kph
Ground Speed Reverse 4 mph / 6.4 kph 4 mph / 6.4 kph 4 mph / 6.4 kph
Wheels Front 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 33.0 cm) 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 33.0 cm) 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 33.0 cm)
Wheels Rear 22.0 x 10.0 in – 12.0 in (55.9 x 25.4 cm – 30.5 cm) 22.0 x 10.5 in – 12.0 in (55.9 x 26.7 cm – 30.5 cm) 22.0 x 12.0 in – 12.0 in (55.9 x 30.5 cm – 30.5 cm)
Electric
Battery Capacity 300 CCA 300 CCA 300 CCA
Battery Type Lead Acid – Maintenance Free Lead Acid – Maintenance Free Lead Acid – Maintenance Free
Battery Size U1 U1 U1
Deck
Deck Size 60 in / 152.4 cm 60 in / 152.4 cm 60 in / 152.4 cm
Coverage Hour 5.1 acres / 2.1 hectares 5.1 acres / 2.1 hectares 5.1 acres / 2.1 hectares
Deck Material 7 ga 7 ga 7 ga
Deck Construction Fabricated X-Factor® 3 Fabricated X-Factor® 3 Fabricated X-Factor® 3
Discharge Configuration Side Side Side
Cutting Height Min 1.5 in / 3.8 cm 1.5 in / 3.8 cm 1.5 in / 3.8 cm
Cutting Height Max 5 in / 12.7 cm 5 in / 12.7 cm 5 in / 12.7 cm
Cutting Width 60 in / 152.4 cm 60 in / 152.4 cm 60 in / 152.4 cm
Dimensions
Weight (assembled) 931 lb 952 lb 925 lb
Length 79 in / 200.7 cm 79 in / 200.7 cm 79 in / 200.7 cm
Width (Chute Up) 56.2 in / 142.7 cm 63.7 in / 161.8 cm 50.8 in / 129 cm
Width (Chute Down) 67.3 in / 170.9 cm 74.8 in / 190 cm 61.9 in / 157.2 cm
