Gravely PRO-TURN® EV Series

Gravely PRO-TURN® EV Series

$18,999.00

Compare
SKU: N/A Categories: , , Brand:

Description

Features

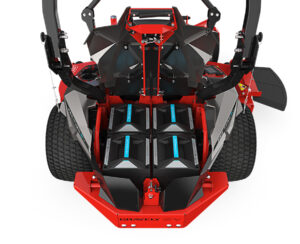

FusionCore QuickSwap Batteries

FusionCore QuickSwap batteries are designed with flexibility in mind, ensuring you and your crew have the ability to continue cutting all day and beyond. Once again, Gravely is driving innovation and taking full charge of the new electric frontier.

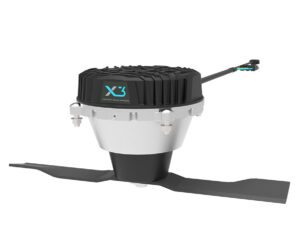

X3 Constant Drive Spindles

Our proprietary spindles are designed to prevent motor damage by absorbing blade impact, protecting the machine from those unavoidable, accidental run-ins with ordinary obstacles. Spindles are easily serviceable, allowing you to rebuild and not replace.

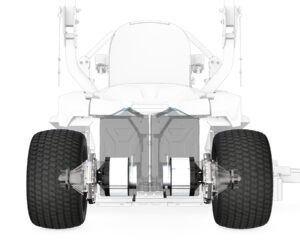

Next-Gen Wheel Drives

Commercial durability and comfort reign supreme. Transaxles are driven with a brushless electric drive motor coupled with a planetary gearbox that increases torque. Your ride will feel the same as a gas-powered machine…minus the vibration, noise and exhaust.



PRO-TURN EV 48 REAR DISCHARGE, BATTERIES INCLUDED

PRO-TURN EV 52 REAR DISCHARGE, BATTERIES INCLUDED

PRO-TURN EV 60 REAR DISCHARGE, BATTERIES INCLUDED
Model Number 997008 997009 997010
Power Train
Engine FusionCore FusionCore FusionCore
Power Brand N/A N/A N/A
Fuel System Electric Electric Electric
Drive System Electric Wheel drive Electric Wheel drive Electric Wheel drive
Transmission Type GRAVELY GEARBOX GRAVELY GEARBOX GRAVELY GEARBOX
Brake Type Electric Parking Electric Parking Electric Parking
Driver Position Sit Sit Sit
Ground Speed Forward 11 mph / 17.7 kph 11 mph / 17.7 kph 11 mph / 17.7 kph
Ground Speed Reverse 5.5 mph / 8.8 kph 5.5 mph / 8.8 kph 5.5 mph / 8.8 kph
Wheels Front 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 15.2 cm) 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 15.2 cm) 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 15.2 cm)
Wheels Rear 22.0 x 10.0 in – 12.0 in (55.9 x 25.4 cm – 30.5 cm) 22.0 x 10.5 in – 12.0 in (55.9 x 26.7 cm – 30.5 cm) 22.0 x 12.0 in – 12.0 in (55.9 x 30.5 cm – 30.5 cm)
Electric
Display GRAVELY LCD GRAVELY LCD GRAVELY LCD
Charge Time 12 Hours 12 Hours 12 Hours
Charger Type Standard Standard Standard
Battery Capacity 4 KWh 4 KWh 4 KWh
Machine Battery Capacity 16 kWh 16 kWh 16 kWh
Number of Batteries 4 4 4
Battery Voltage 56 56 56
Battery Type Li-ion Li-ion Li-ion
Battery Size Fusion Core 4KW Fusion Core 4KW Fusion Core 4KW
Deck
Deck Size 48 in / 121.9 cm 52 in / 132.1 cm 60 in / 152.4 cm
Coverage Hour 5.3 acres / 2.1 hectares 5.7 acres / 2.3 hectares 6.6 acres / 2.7 hectares
Spindle Type Electric Electric Electric
Deck Material 7 ga 7 ga 7 ga
Deck Construction Fabricated X-Factor® 3 Fabricated X-Factor® 3 Fabricated X-Factor® 3
Discharge Configuration Rear Rear Rear
Cutting Height Min 1.5 in / 3.8 cm 1.5 in / 3.8 cm 1.5 in / 3.8 cm
Cutting Height Max 5 in / 12.7 cm 5 in / 12.7 cm 5 in / 12.7 cm
Cutting Width 48 in / 121.9 cm 52 in / 132.1 cm 60 in / 152.4 cm
Dimensions
Weight (assembled) 1286 lb / 583.2 kg 1301 lb / 590 kg 1312 lb / 595 kg
Length 83 in / 210.8 cm 83 in / 210.8 cm 83 in / 210.8 cm
Width 54 in / 137.2 cm 64 in / 162.6 cm
Width (Chute Up) 50 in 63 in 64 in
Width (Chute Down) 54 in 54 in 62 in

PRO-TURN EV 48 SIDE DISCHARGE, BATTERIES INCLUDED

PRO-TURN EV 52 SIDE DISCHARGE, BATTERIES INCLUDED

PRO-TURN EV 60 SIDE DISCHARGE, BATTERIES INCLUDED
Model Number 997005 997006 997007
Power Train
Engine FusionCore FusionCore FusionCore
Power Brand N/A N/A N/A
Fuel System Electric Electric Electric
Drive System Electric Wheel drive Electric Wheel drive Electric Wheel drive
Transmission Type GRAVELY GEARBOX GRAVELY GEARBOX GRAVELY GEARBOX
Brake Type Electric Parking Electric Parking Electric Parking
Driver Position Sit Sit Sit
Ground Speed Forward 11 mph / 17.7 kph 11 mph / 17.7 kph 11 mph / 17.7 kph
Ground Speed Reverse 5.5 mph / 8.8 kph 5.5 mph / 8.8 kph 5.5 mph / 8.8 kph
Wheels Front 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 15.2 cm) 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 15.2 cm) 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 15.2 cm)
Wheels Rear 22.0 x 10.0 in – 12.0 in (55.9 x 25.4 cm – 30.5 cm) 22.0 x 10.5 in – 12.0 in (55.9 x 26.7 cm – 30.5 cm) 22.0 x 12.0 in – 12.0 in (55.9 x 30.5 cm – 30.5 cm)
Electric
Display GRAVELY LCD GRAVELY LCD GRAVELY LCD
Charge Time 12 Hours 12 Hours 12 Hours
Charger Type Standard Standard Standard
Battery Capacity 4 KWh 4 KWh 4 KWh
Machine Battery Capacity 16 kWh 16 kWh 16 kWh
Number of Batteries 4 4 4
Battery Voltage 56 56 56
Battery Type Li-ion Li-ion Li-ion
Battery Size Fusion Core 4KW Fusion Core 4KW Fusion Core 4KW
Deck
Deck Size 48 in / 121.9 cm 52 in / 132.1 cm 60 in / 152.4 cm
Coverage Hour 5.3 acres / 2.1 hectares 5.7 acres / 2.3 hectares 6.6 acres / 2.7 hectares
Spindle Type Electric Electric Electric
Deck Material 7 ga 7 ga 7 ga
Deck Construction Fabricated X-Factor® 3 Fabricated X-Factor® 3 Fabricated X-Factor® 3
Discharge Configuration Side Side Side
Cutting Height Min 1.5 in / 3.8 cm 1.5 in / 3.8 cm 1.5 in / 3.8 cm
Cutting Height Max 5 in / 12.7 cm 5 in / 12.7 cm 5 in / 12.7 cm
Cutting Width 48 in / 121.9 cm 52 in / 132.1 cm 60 in / 152.4 cm
Dimensions
Weight (assembled) 1261 lb / 571.9 kg 1284 lb / 582.3 kg 1053 lb / 477.6 kg
Length 83 in / 210.8 cm 83 in / 210.8 cm 83 in / 210.8 cm
Width 62 in / 157.5 cm
Width (Chute Up) 50 in 56 in 50 in / 127 cm
Width (Chute Down) 62 in 67 in 75 in
