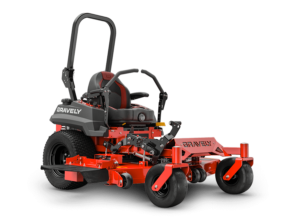

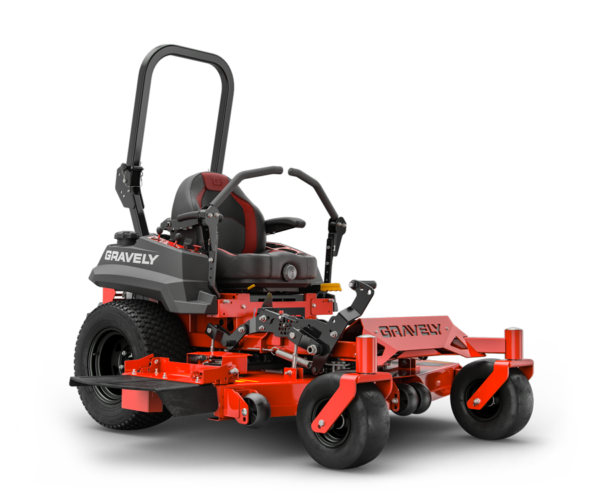

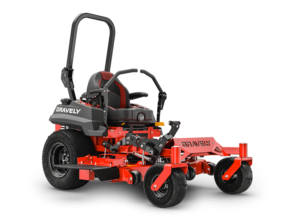

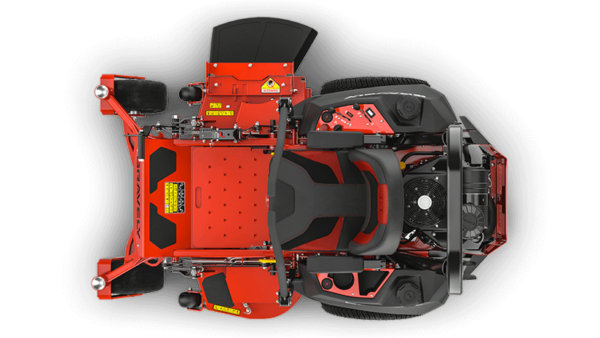

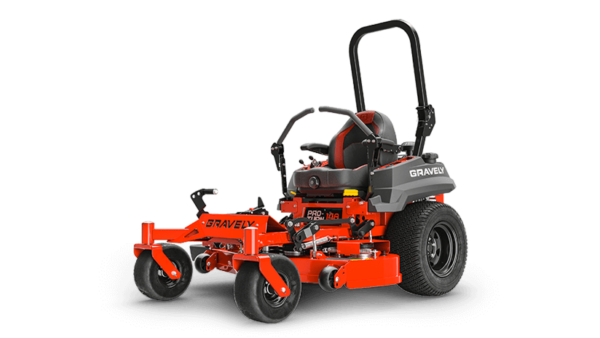

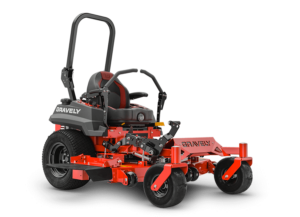

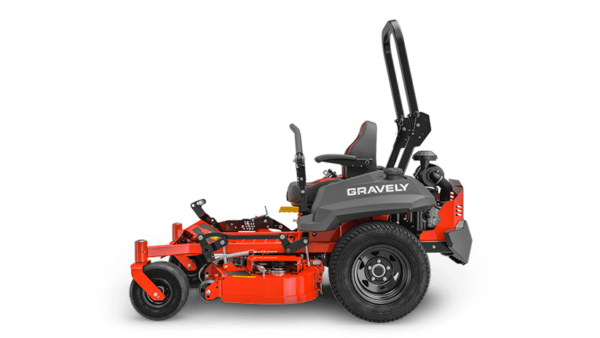

Gravely PRO-TURN® 100 Series
Gravely PRO-TURN® 100 Series - Image 2
Gravely PRO-TURN® 100 Series - Image 3
Gravely PRO-TURN® 100 Series - Image 4

Gravely PRO-TURN® 100 Series

Price range: $10,999.00 through $11,399.00

Compare
SKU: N/A Categories: , , Brand:

Description

Features

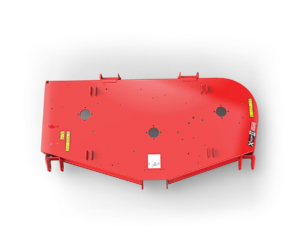

X-Factor® II Deck

The 7-gauge, X-Factor® II deck is fabricated from top to bottom, providing industrial-strength peace of mind that’s reinforced with an exclusive limited lifetime warranty.

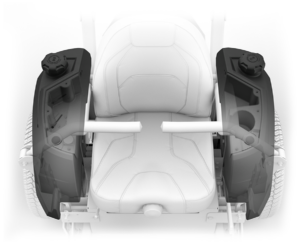

Dual Saddle Tanks

With a 10-gallon capacity your crew will make fewer stops to refuel. That means more efficiency which leads to cutting more grass.

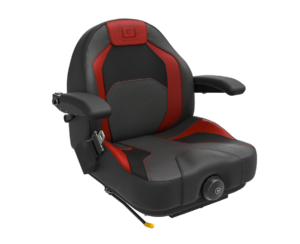

Seating System

A full-suspension seat provides added lateral stability and improved durability with vibration control and a four-inch seat slide for all-day comfort.



PRO-TURN 148 KAWASAKI

PRO-TURN 152 KAWASAKI

PRO-TURN 160 KAWASAKI
Model Number 991128 991129 991130
Power Train
Engine Kawasaki® FX691V Kawasaki® FX691V Kawasaki® FX730V
Horsepower 22 22 23.5
Engine Displacement 44.3 in / 726 cc 44.3 in / 726 cc 44.3 in / 726 cc
Fuel System Gas Gas Gas
Fuel Capacity 10 gal / 37.9 ltr 10 gal / 37.9 ltr 10 gal / 37.9 ltr
Drive System Hydro-Gear® ZT-3400 Transaxles Hydro-Gear® ZT-3400 Transaxles Hydro-Gear® ZT-3400 Transaxles
Transmission Type Hydrostatic Hydrostatic Hydrostatic
Brake Type Lever Activated Parking Lever Activated Parking Lever Activated Parking
Driver Position Sit Sit Sit
Ground Speed Forward 10 mph / 16.1 kph 10 mph / 16.1 kph 10 mph / 16.1 kph
Ground Speed Reverse 5 mph / 8 kph 5 mph / 8 kph 5 mph / 8 kph
Wheels Front 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 33.0 cm) 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 33.0 cm) 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 33.0 cm)
Wheels Rear 23.0 x 10.5 in – 12.0 in (58.4 x 26.7 cm – 30.5 cm) 23.0 x 10.5 in – 12.0 in (58.4 x 26.7 cm – 30.5 cm) 23.0 x 10.5 in – 12.0 in (58.4 x 26.7 cm – 30.5 cm)
Electric
Battery Capacity 300 CCA 300 CCA 300 CCA
Battery Type Lead Acid – Maintenance Free Lead Acid – Maintenance Free Lead Acid – Maintenance Free
Battery Size U1 U1 U1
Deck
Deck Size 48 in / 121.9 cm 52 in / 132.1 cm 60 in / 152.4 cm
Coverage Hour 4.8 acres / 1.9 hectares 5.2 acres / 2.1 hectares 6 acres / 2.4 hectares
Deck Material 7 ga 7 ga 7 ga
Deck Construction Fabricated X-Factor ® II Fabricated X-Factor ® II Fabricated X-Factor ® II
Discharge Configuration Side Side Side
Cutting Height Min 1 in / 2.5 cm 1 in / 2.5 cm 1 in / 2.5 cm
Cutting Height Max 5 in / 12.7 cm 5 in / 12.7 cm 5 in / 12.7 cm
Cutting Width 48 in / 121.9 cm 52 in / 132.1 cm 60 in / 152.4 cm
Dimensions
Weight (assembled) 1062 lb 1079 lb 1121 lb
Length 78.5 in / 199.4 cm 78.5 in / 199.4 cm 78.5 in / 199.4 cm
Width 48 in / 121.9 cm 52 in / 132.1 cm 60 in / 152.4 cm
Width (Chute Up) 50 in / 127 cm 55.5 in / 141 cm 63 in / 160 cm
Width (Chute Down) 62 in / 157.5 cm 67.5 in / 171.5 cm 75 in / 190.5 cm
