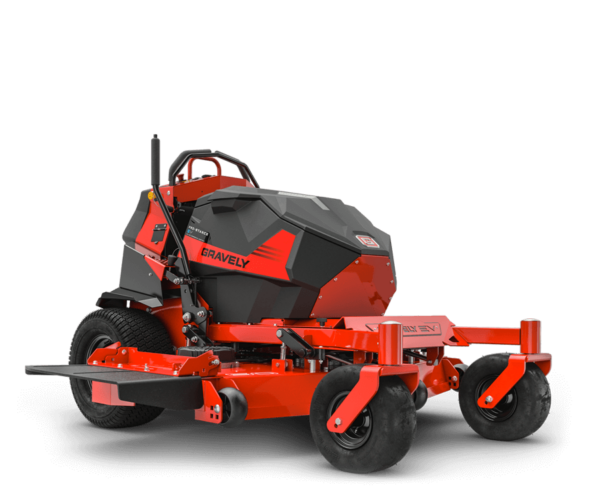

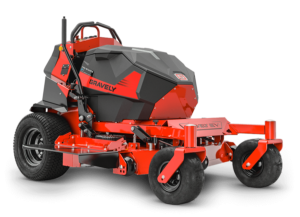

Gravely PRO-STANCE® EV Series

Gravely PRO-STANCE® EV Series

$18,999.00

Compare
SKU: N/A Categories: , , Brand:

Description

Features

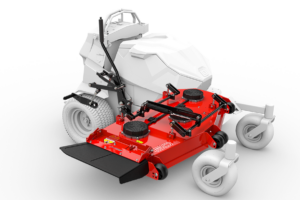

Dual Deck Lift System

Its adjustable foot pedal has revised geometry to significantly reduced the effort needed to lift the deck with its internal lift assist springs. There’s also a transport lock for when you’re ready to move on to your next location.

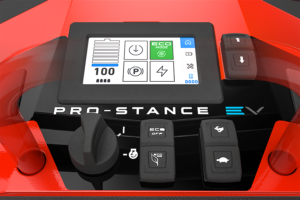

Eco Mode

Get the most out of a charge in Eco Mode. It helps extend mowing time by limiting power during certain applications.

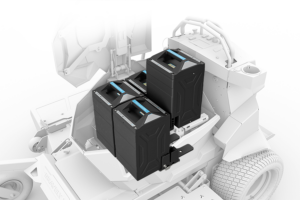

QuickSwap Battery System

Much quicker than filling a gas tank. Simply swap in fully-charged batteries and keep on mowing.

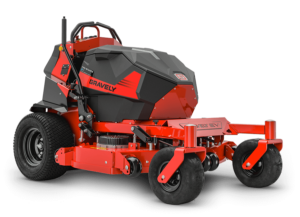

PRO-STANCE EV 48 REAR DISCHARGE, BATTERIES INCLUDED

PRO-STANCE EV 52 REAR DISCHARGE, BATTERIES INCLUDED

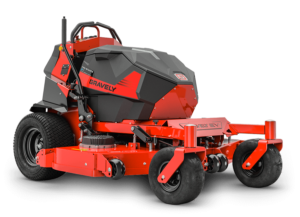

PRO-STANCE EV 60 REAR DISCHARGE, BATTERIES INCLUDED
Model Number 998004 998005 998006
Power Train
Engine FusionCore FusionCore FusionCore
Fuel System Electric Electric Electric
Drive System Electric Wheel drive Electric Wheel drive Electric Wheel drive
Driver Position Stand Stand Stand
Ground Speed Forward 11 mph / 17.7 kph 11 mph / 17.7 kph 11 mph / 17.7 kph
Ground Speed Reverse 5.5 mph / 8.8 kph 5.5 mph / 8.8 kph 5.5 mph / 8.8 kph
Wheels Front 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 33.0 cm) 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 33.0 cm) 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 15.2 cm)
Wheels Rear 20.0 x 10.0 in – 8.0 in (50.8 x 25.4 cm – 20.3 cm) 20.0 x 10.0 in – 8.0 in (50.8 x 25.4 cm – 20.3 cm) 20.0 x 10.0 in – 8.0 in (50.8 x 25.4 cm – 20.3 cm)
Electric
Display GRAVELY LCD GRAVELY LCD GRAVELY LCD
Charge Time 12 Hours 12 Hours 12 Hours
Charger Type Standard Standard Standard
Battery Life 10,000 Charge Cycles 10,000 Charge Cycles 10,000 Charge Cycles
Battery Capacity 4 KWh 4 KWh 4 KWh
Machine Battery Capacity 16 kWh 16 kWh 16 kWh
Number of Batteries 4 4 4
Battery Voltage 56 56 56
Run Time Variable Variable Variable
Battery Type Li-ion Li-ion Li-ion
Battery Size Fusion Core 4KW Fusion Core 4KW Fusion Core 4KW
Deck
Deck Size 48 in / 121.9 cm 52 in / 132.1 cm 60 in / 152.4 cm
Coverage Hour 5.3 acres / 2.1 hectares 5.7 acres / 2.3 hectares 6.6 acres / 2.7 hectares
Spindle Type Electric Electric Electric
Deck Material 7 ga 7 ga 7 ga
Deck Construction Fabricated X-Factor® 3 Fabricated X-Factor® 3 Fabricated X-Factor® 3
Discharge Configuration Rear Rear Rear
Cutting Height Min 1.5 in / 3.8 cm 1.5 in / 3.8 cm 1.5 in / 3.8 cm
Cutting Height Max 5 in / 12.7 cm 5 in / 12.7 cm 5 in / 12.7 cm
Cutting Width 48 in / 121.9 cm 52 in / 132.1 cm 60 in / 152.4 cm
Dimensions
Weight (assembled) 1236 lb 1254 lb 1264 lb / 573.2 kg
Length 74.5 in / 189.2 cm 74.5 in / 189.2 cm 74.5 in / 189.2 cm
Width (Chute Up) 50 in / 127 cm 54 in / 137.2 cm 62 in / 157.5 cm
Width (Chute Down) 50 in / 127 cm 54 in / 137.2 cm 62 in / 157.5 cm

PRO-STANCE EV 48 SIDE DISCHARGE, BATTERIES INCLUDED

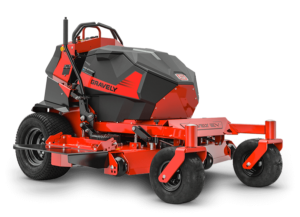

PRO-STANCE EV 52 SIDE DISCHARGE, BATTERIES INCLUDED

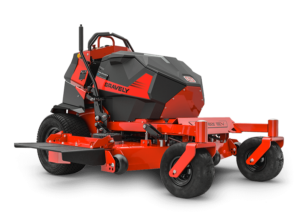

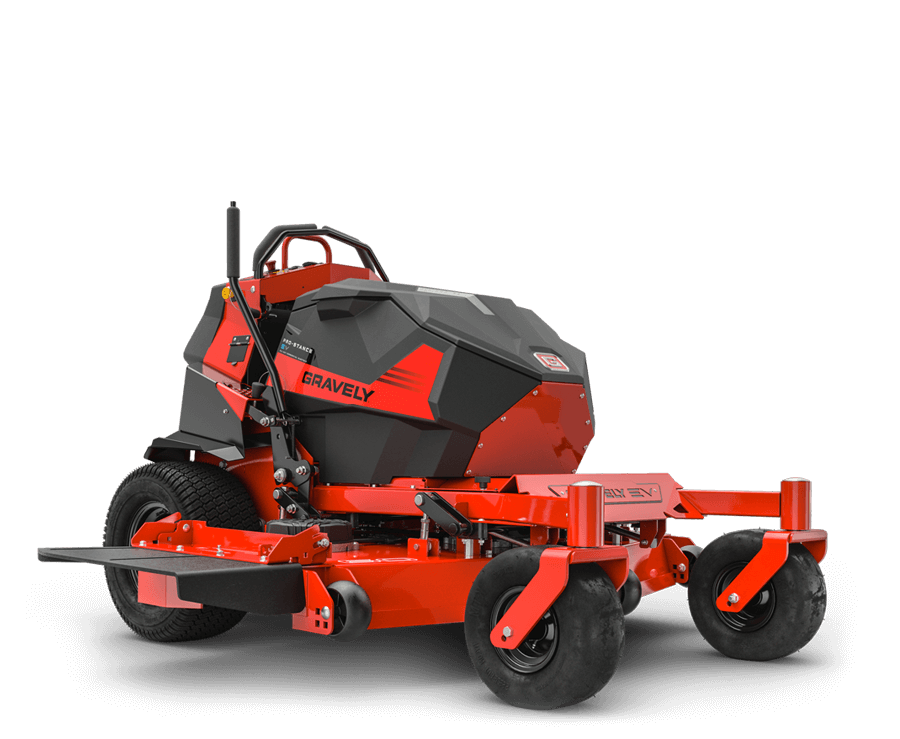

PRO-STANCE EV 60 SIDE DISCHARGE, BATTERIES INCLUDED
Model Number 998001 998002 998003
Power Train
Engine FusionCore FusionCore FusionCore
Fuel System Electric Electric Electric
Drive System Electric Wheel drive Electric Wheel drive Electric Wheel drive
Driver Position Stand Stand Stand
Ground Speed Forward 11 mph / 17.7 kph 11 mph / 17.7 kph 11 mph / 17.7 kph
Ground Speed Reverse 5.5 mph / 8.8 kph 5.5 mph / 8.8 kph 5.5 mph / 8.8 kph
Wheels Front 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 33.0 cm) 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 33.0 cm) 13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 15.2 cm)
Wheels Rear 20.0 x 10.0 in – 8.0 in (50.8 x 25.4 cm – 20.3 cm) 20.0 x 10.0 in – 8.0 in (50.8 x 25.4 cm – 20.3 cm) 20.0 x 10.0 in – 8.0 in (50.8 x 25.4 cm – 20.3 cm)
Electric
Display GRAVELY LCD GRAVELY LCD GRAVELY LCD
Charge Time 12 Hours 12 Hours 12 Hours
Charger Type Standard Standard Standard
Battery Life 10,000 Charge Cycles 10,000 Charge Cycles 10,000 Charge Cycles
Battery Capacity 4 KWh 4 KWh 4 KWh
Machine Battery Capacity 16 kWh 16 kWh 16 kWh
Number of Batteries 4 4 4
Battery Voltage 56 56 56
Run Time Variable Variable Variable
Battery Type Li-ion Li-ion Li-ion
Battery Size Fusion Core 4KW Fusion Core 4KW Fusion Core 4KW
Deck
Deck Size 48 in / 121.9 cm 52 in / 132.1 cm 60 in / 152.4 cm
Coverage Hour 5.3 acres / 2.1 hectares 5.7 acres / 2.3 hectares 6.6 acres / 2.7 hectares
Spindle Type Electric Electric Electric
Deck Material 7 ga 7 ga 7 ga
Deck Construction Fabricated X-Factor® 3 Fabricated X-Factor® 3 Fabricated X-Factor® 3
Discharge Configuration Side Side Side
Cutting Height Min 1.5 in / 3.8 cm 1.5 in / 3.8 cm 1.5 in / 3.8 cm
Cutting Height Max 5 in / 12.7 cm 5 in / 12.7 cm 5 in / 12.7 cm
Cutting Width 48 in / 121.9 cm 52 in / 132.1 cm 60 in / 152.4 cm
Dimensions
Weight (assembled) 1234 lb 1256 lb 1287 lb
Length 74.5 in / 189.2 cm 74.5 in / 189.2 cm 74.5 in / 189.2 cm
Width (Chute Up) 50 in / 127 cm 56 in / 142.2 cm 63 in / 160 cm
Width (Chute Down) 62 in / 157.5 cm 67 in / 170.2 cm 75 in / 190.5 cm
