Description
Features

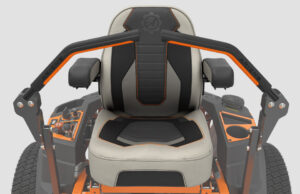

HIGH-BACK SEAT & HAND GRIPSA 20” seat built for long mowing days that looks as great as it feels. It comes complete with arm rests for less fatigue. Hand grips were ergonomically designed down to the last dimple, giving you total control through every turn. |
|
|
|
|
|
|
|||||||
| Model Number |
991296
|
991159
|
991163
|
||||||
|---|---|---|---|---|---|---|---|---|---|
| Engine | |||||||||
| Engine |
Kawasaki® FR691V
|
Kawasaki® FR691V
|
Kawasaki® FR730V
|
||||||
| Engine Displacement (in/cc) |
726 cc
|
726 cc
|
726 cc
|
||||||
| Horsepower |
23
|
23
|
24
|
||||||
| Fuel Capacity (gal/ltr) |
5.1 gal / 19.3 ltr
|
5.1 gal / 19.3 ltr
|
5.1 gal / 19.3 ltr
|
||||||
| Deck | |||||||||
| Cutting Width (in/cm) |
48 in / 121.9 cm
|
52 in / 132.1 cm
|
60 in / 152.4 cm
|
||||||
| Cutting Height Min |
1.5 in / 3.8 cm
|
1.5 in / 3.8 cm
|
1.5 in / 3.8 cm
|
||||||
| Cutting Height Max |
5 in / 12.7 cm
|
5 in / 12.7 cm
|
5 in / 12.7 cm
|
||||||
| Cutting Positions |
15
|
15
|
15
|
||||||
| Spindle Material |
Forged Aluminum
|
Forged Aluminum
|
Forged Aluminum
|
||||||
| Deck Engagement |
Electric Warner
|
Electric Warner
|
Electric Warner
|
||||||
| Deck Lift System |
Foot Operated
|
Foot Operated
|
Foot Operated
|
||||||
| Deck Lift Assist Spring |
Standard
|
Standard
|
Standard
|
||||||
| Transport Lock |
Standard
|
||||||||
| Drive System | |||||||||
| Drive System |
Hydro-Gear® ZT-3100® Transaxles
|
Hydro-Gear® ZT-3100® Transaxles
|
Hydro-Gear® ZT-3100® Transaxles
|
||||||
| Ground Speed Forward (mph/kph) |
8 mph / 12.9 kph
|
8 mph / 12.9 kph
|
8 mph / 12.9 kph
|
||||||
| Ground Speed Reverse (mph/kph) |
4 mph / 6.4 kph
|
4 mph / 6.4 kph
|
4 mph / 6.4 kph
|
||||||
| Dimensions | |||||||||
| Weight (assembled) |
778 lb / 352.8 kg
|
816 lb / 370.1 kg
|
845 lb / 383.2 kg
|
||||||
| Length |
79 In / 200.7cm
|
79 In / 200.7cm
|
79 In / 200.7cm
|
||||||
| Width (Chute Up) |
50.8 in / 129 cm
|
56.2 in / 142.7 cm
|
63.7 in / 161.8 cm
|
||||||
| Width (Chute Down) |
61.9 in / 157.2 cm
|
67.3 in / 170.9 cm
|
74.8 in / 190 cm
|
||||||
| Warranty | |||||||||
| Product Warranty |
4 Years or 500 Hours
|
4 Years or 500 Hours
|
4 Years or 500 Hours
|
||||||
| Features | |||||||||
| Auxiliary Power |
N/A
|
N/A
|
N/A
|
||||||
| Floor Mat |
N/A
|
N/A
|
N/A
|
||||||
| Deck Pan Storage Tray |
Standard
|
N/A
|
N/A
|
||||||
| Lights |
Accessory
|
Accessory
|
Accessory
|
||||||
| Seat Isolation |
Accessory
|
Accessory
|
Accessory
|
||||||
